materiał
-
EN-GJS-500-7 PN-EN
1563:2000
-
owiercanie - PN-EN
1092-2:1999
-
ciśnienie pracy 1.0 -
1.6 MPa
-
zabezpieczenie antykorozyjne
|
|
|

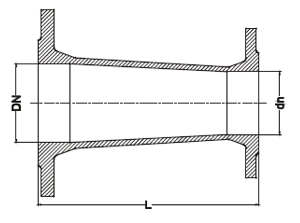

DN |
dn |
L |
Masa |
|
[mm] |
[kg] |
| 80 |
50 |
120 |
7 |
| 100 |
80 |
120 |
9 |
| 150 |
80 |
160 |
12 |
| 150 |
100 |
160 |
13 |
| 200 |
80 |
200 |
18 |
| 200 |
100 |
200 |
19 |
| 200 |
150 |
200 |
22 |
| 250 |
100 |
200 |
27 |
| 250 |
150 |
200 |
30 |
| 250 |
150 |
160 |
28 |
|
|
|
DN |
dn |
L |
Masa |
|
[mm] |
[kg] |
| 250 |
200 |
160 |
32 |
| 300 |
150 |
255 |
34 |
| 200 |
200 |
39 |
| 250 |
160 |
44 |
| 400 |
200 |
305 |
54 |
| 250 |
265 |
60 |
| 300 |
200 |
58 |
| 500 |
400 |
200 |
110 |
| 600 |
400 |
305 |
210 |
| 500 |
200 |
150 |
| 800 |
600 |
300 |
335 |
|
