materiał
-
EN-GJS-500-7 PN-EN
1563:2000
-
ciśnienie pracy 1.0 -
1.6 MPa
-
zabezpieczenie antykorozyjne
|
|
|

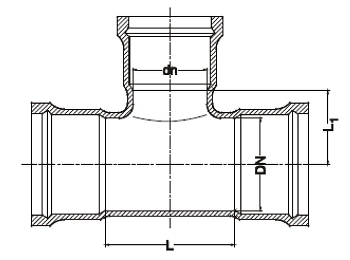

DN |
dn |
L |
Li |
Masa |
|
[mm] |
[kg] |
|
100 |
80 |
170 |
95 |
13 |
|
100 |
190 |
95 |
14 |
|
150 |
80 |
180 |
120 |
20 |
|
100 |
200 |
125 |
21 |
|
150 |
260 |
130 |
26 |
|
200 |
80 |
180 |
145 |
26 |
|
100 |
200 |
150 |
29 |
|
150 |
260 |
155 |
34 |
|
200 |
320 |
160 |
39 |
|
|
|
DN |
dn |
L |
Li |
Masa |
|
[mm] |
[kg] |
|
250 |
100 |
200 |
170 |
45 |
|
150 |
260 |
175 |
51 |
|
200 |
320 |
185 |
57 |
|
250 |
380 |
190 |
64 |
|
300 |
150 |
260 |
205 |
66 |
|
200 |
320 |
205 |
73 |
|
300 |
440 |
220 |
99 |
|
