materiał
-
EN-GJS-500-7 PN-EN
1563:2000
-
owiercanie - PN-EN
1092-2:1999
-
ciśnienie pracy 1.0 -
1.6 MPa
-
zabezpieczenie antykorozyjne
|
|
|

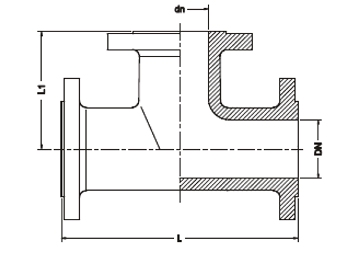

DN |
dn |
L |
L1 |
Masa |
DN |
dn |
L |
L1 |
Masa |
DN |
dn |
L |
L1 |
Masa |
|
mm |
kg |
mm |
kg |
mm |
kg |
|
80 |
50 |
310 |
154 |
14 |
300 |
80 |
425 |
295 |
97 |
500 |
200 |
650 |
440 |
262 |
|
80 |
330 |
165 |
16 |
100 |
450 |
300 |
99 |
250 |
710 |
450 |
270 |
|
100 |
50 |
320 |
155 |
16,5 |
150 |
505 |
310 |
101 |
300 |
770 |
460 |
274 |
|
80 |
330 |
175 |
18,5 |
200 |
565 |
320 |
105 |
400 |
890 |
480 |
285 |
|
100 |
360 |
180 |
19,5 |
250 |
620 |
330 |
114 |
500 |
1000 |
500 |
300 |
|
150 |
80 |
360 |
200 |
29 |
300 |
680 |
340 |
117 |
600 |
80 |
580 |
480 |
304 |
|
100 |
380 |
205 |
29,5 |
350 |
350 |
760 |
380 |
144 |
200 |
1100 |
500 |
307 |
|
150 |
440 |
220 |
32 |
400 |
80 |
470 |
355 |
152 |
400 |
1100 |
550 |
323 |
|
200 |
80 |
380 |
225 |
42,5 |
100 |
490 |
360 |
166 |
600 |
1100 |
550 |
350 |
|
100 |
400 |
230 |
43 |
150 |
550 |
370 |
168 |
800 |
200 |
690 |
585 |
350 |
|
150 |
460 |
240 |
46,5 |
200 |
615 |
385 |
171 |
400 |
915 |
615 |
430 |
|
200 |
520 |
260 |
50 |
250 |
665 |
390 |
179 |
800 |
1350 |
675 |
630 |
|
250 |
80 |
400 |
260 |
72 |
300 |
730 |
400 |
182 |
1000 |
400 |
990 |
735 |
650 |
|
100 |
420 |
265 |
75 |
400 |
840 |
420 |
200 |
600 |
1650 |
765 |
990 |
|
150 |
470 |
270 |
79 |
500 |
80 |
515 |
420 |
212 |
|
|
200 |
520 |
280 |
81 |
100 |
535 |
420 |
215 |
|
250 |
570 |
290 |
83 |
150 |
645 |
405 |
255 |
|
|
|
|
