materiał
-
EN-GJS-500-7 PN-EN
1563:2000
-
ciśnienie pracy 1.0 -
1.6 MPa
-
zabezpieczenie antykorozyjne
|

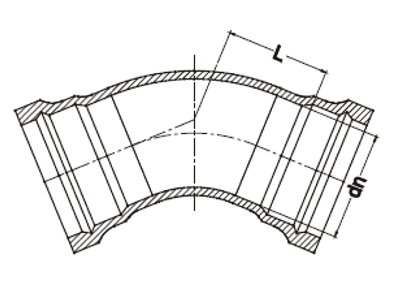

dn |
L |
Masa |
L |
Masa |
L |
Masa |
L |
Masa |
|
[mm] |
[mm] |
[kg] |
[mm] |
[kg] |
[mm] |
[kg] |
[mm] |
[kg] |
|
kat |
11° |
22,5° |
30° |
45° |
|
80 |
30 |
6,5 |
40 |
7 |
50 |
7 |
60 |
7,5 |
|
100 |
30 |
8 |
40 |
9 |
55 |
9 |
65 |
9 |
|
150 |
55 |
14 |
70 |
14 |
75 |
15 |
75 |
16 |
|
200 |
40 |
20 |
65 |
21 |
80 |
22 |
90 |
25 |
|
250 |
55 |
27,5 |
80 |
30 |
80 |
32 |
110 |
36 |
|
300 |
55 |
36,5 |
85 |
40,5 |
110 |
43 |
150 |
48 |
|
400 |
65 |
75 |
110 |
86 |
130 |
87 |
185 |
95 |
|
500 |
75 |
95 |
130 |
102 |
180 |
115 |
240 |
132 |
|
600 |
85 |
138 |
150 |
151 |
215 |
170 |
285 |
245 |
|
|
|
|
|
|
|
